A Helpful Diagram of Your Shower Plumbing System [Infographic]

woman holding the shower head with high water pressure

Have you ever been curious about the parts that make up your shower? Well, you’re in luck. This ultimate guide is your one-stop resource for understanding the essential plumbing features of a shower. From turning on the faucet to the water cascading down, we’ll unravel the mysteries behind the elements that make a shower possible.

Also, we’ll provide a plumbing diagram for shower components and delve into the intricacies of valves, diverters, and more. So, without further ado, let’s discover the secrets of bathroom plumbing!

Understanding How Shower Plumbing Works

At its core, a shower relies on a series of interconnected pipes and valves that control the flow of water. When you turn on the faucet, water from your supply lines enters the shower system and is directed to different components, resulting in a faucet downpour. The shower plumbing system consists of both hot and cold water supply lines, which are connected to the main water lines.

The hot water supply line connects to the water heater, where the water is heated before being distributed to the shower head. The cold water supply line, on the other hand, connects directly to the main water line.

Both supply lines are equipped with shutoff valves, allowing homeowners to turn off the water supply to the shower. Once the hot and cold water supply lines reach the shower area, they are connected to a mixing valve. The mixing valve is responsible for blending hot and cold water to achieve the desired temperature.

The Bathroom Plumbing Components of a Shower

Now that you have a general idea of how bathroom plumbing works, let’s take a closer look at the parts that bring everything together. Here are some of the hidden components of your shower:

  • Drain
  • Drain pipe
  • Shower trap
  • Shut-off valve
  • Water supply pipe
  • Waste outlet pipe
  • Water heater
  • Shower diverter pipe

All of these parts work in harmony to create a functional showering experience. Below is a quick overview of how things operate:

Piping and Fittings

The piping and fittings connect all the components of the shower system together. They ensure a secure and leak-free connection between the water supply lines, shower valve, diverter, shower head, and other outlets.

Water Supply Lines

The water supply lines are the pipes that bring water into the shower system. They are located behind your bathroom’s interior wall and are typically connected to the main water supply in your home. These lines deliver both hot and cold water to the shower valve.

Drainage System

The drainage system is responsible for removing the used water from the shower. It consists of a drain pipe that’s connected to the shower base and leads to your house’s main drain line. Proper drainage is essential for preventing water buildup and potential damage to your shower.

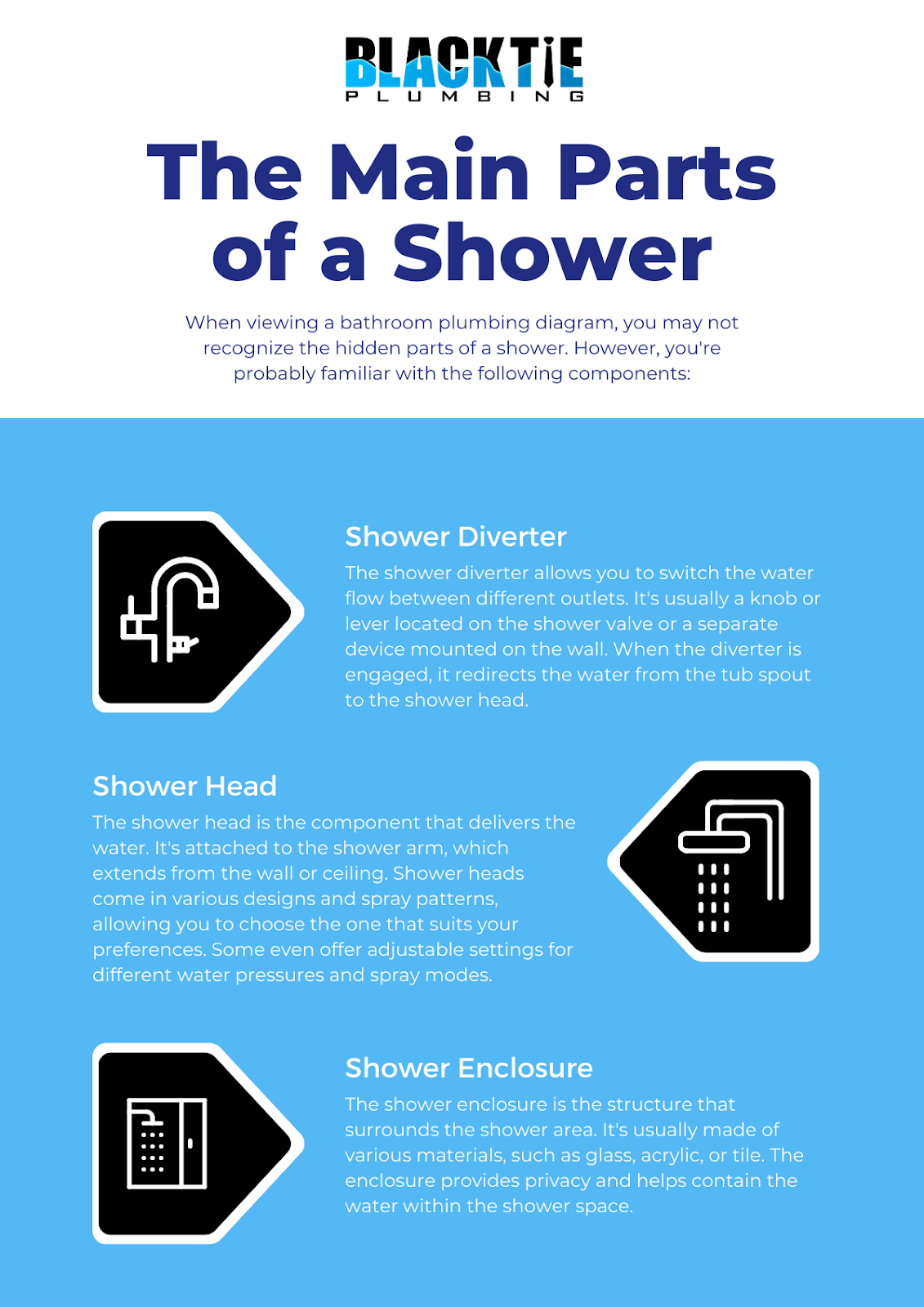

The Main Parts of a Shower

walk in shower space with clean towels on the seat

When viewing a bathroom plumbing diagram, you may not recognize the hidden parts of a shower. However, you’re probably familiar with the following components:

  • Shower Diverter: The shower diverter allows you to switch the water flow between different outlets. It’s usually a knob or lever located on the shower valve or a separate device mounted on the wall. When the diverter is engaged, it redirects the water from the tub spout to the shower head.
  • Shower Head: The shower head is the component that delivers the water. It’s attached to the shower arm, which extends from the wall or ceiling. Shower heads come in various designs and spray patterns, allowing you to choose the one that suits your preferences. Some even offer adjustable settings for different water pressures and spray modes.
  • Shower Enclosure: The shower enclosure is the structure that surrounds the shower area. It’s usually made of various materials, such as glass, acrylic, or tile. The enclosure provides privacy and helps contain the water within the shower space.

The Ins and Outs of Bathroom Plumbing

As you can see, bathroom plumbing is a bit complex. The components are quite simple, but it’s a lot to master. The good news is, you don’t have to figure it out—that’s what we’re here for.
